REVO PROPANEL AIR FILTER ELEMENT VARIOUS VAG 1.2TSI/1.4TSI 2012>

Revo ProPanel Filter
High-Performance Air Filters

Benefits

• Designed to increase horsepower and rate of acceleration
• Exceptional filtration
• High air flow with three layers of foam
• Lifetime warranty
• Cleanable (Every 10,000Miles or 12 Months)
• Works with original manufacturers airbox

Design and performance

Why choose foam? Because, compared to paper or other filter technologies, reticulated polyester foam achieves optimum performance against three key criteria:

• Maximum airflow: the ability to allow air to pass through without causing a large pressure drop.
• Cleaning efficiency: the capability to arrest a high proportion of airborne dust while feeding the engine clean air.
• Dust load-up tolerance: the capability to absorb a large amount of dust without reducing air flow capacity.

This design of filter has been used in all fields of motorsport from Formula 1 to the World Rally Championship. The range receives this same attention to detail at the design stage and is then taken into production with consummate quality.

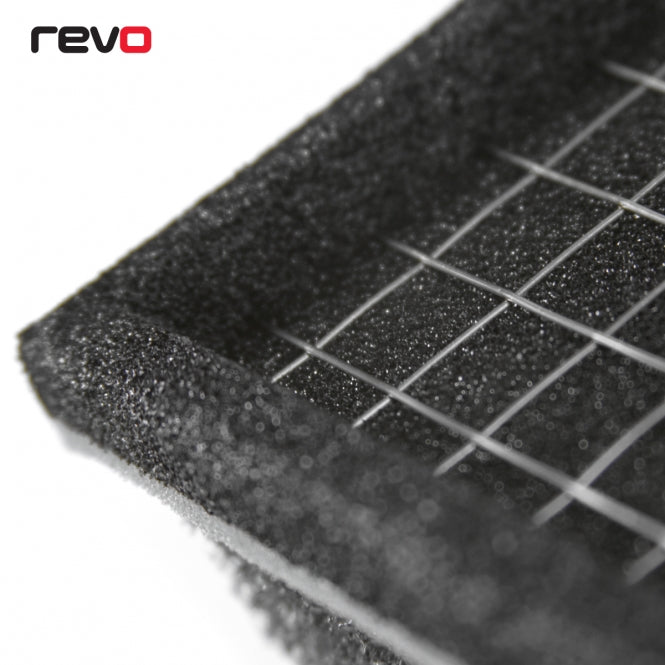

Three layer foam system

Revo ProPanel Filters use multi-layered foam technology to trap dust and dirt while maintaining flow efficiency over time. Using foam increases the filter's surface area and is washable, compared to standard paper and cotton filters which trap dust on the surface and become less efficient the more they are used, choking the engine and reducing performance.

The outer core is a coarse foam designed to trap larger particles, the second layer is a medium foam designed to trap most particles and the inner core is fine foam which will trap any particles small enough to reach it. The triple layer foam design ensures an exceptional level of engine protection and long-term performance advantage.

1: Stainless steel wire mesh

To avoid erosion, only the highest quality steel is used.



2: Course outer layer:

Stops large pieces of dirt and foreign matter from penetrating further. Straightens airflow into subsequent layers.



3: Medium grade middle layer:

This second filtration layer traps most of the harmful dirt that leads to engine damage.



4: Fine inner layer:

Extracts fine particles while allowing full airflow to the engine for maximum power.



Advantages of a Revo ProPanel filter

• Emissions legal in all 50 US states
• Will not void vehicle warranty
• Lifetime warranty (to the original purchaser with proof of purchase)

Fitting
