REVO FORD MUSTANG ECU | 2.3 ECOBOOST

$1,700.00 NZD
OR 6 WEEKLY PAYMENTS FROM $283.33 WITH Whats this?
ECU TUNE:
Quantity:

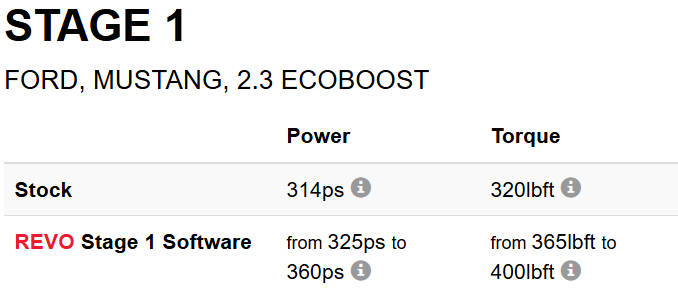

Revo Stage 1 Software Ford Mustang 2.3 EcoBoost

Stage 1 Performance Software


2.3 Litre EcoBoost


The Ford Mustang is synonymous with a big V8 engine, so Ford’s decision to offer a 4 cylinder 2.3 option might have come as a shock; however, we couldn’t contain our excitement. Knowing that it was an EcoBoost engine and therefore turbocharged meant it wasn’t just a practical alternative to the V8, but also offered a lot more tuning potential.

With mixed reviews in the press, we were keen to get behind the wheel of one to judge for ourselves. To beat the waiting lists we opted to import one from the US and shortly after taking shipment, it was out on track for data-logging. Although this car certainly looks the part we were underwhelmed with how it performed; handling, power delivery and performance were all areas that could be refined allowing us to improve the entire driving experience.


An Enhanced Driving Experience


At 1,655kg (in fastback form) the mustang isn’t a light car which goes some way to explain why it feels a little flat as standard. Whilst initial testing illustrated the potential of this vehicle, especially for partial throttle power delivery, it also highlighted how much of an impact higher temperatures have on the overall performance of this car.

Revo Stage 1 Software comes as the result of twelve months intensive development and testing in UK, China, Korea and Germany. Stage 1 combines increased power and torque, huge midrange gains and refined power delivery to give you a car is not only more exciting to drive, but more nimble and responsive when driven hard. Revo transforms the Mustang offering smoother throttle response and power delivery with a much wider power band throughout the rev range. This is the perfect product for Mustang owners who want the performance to match the cars aggressive aesthetics.



Software Features


Revo Speed Limit Unlock

Speed Limit Unlock

The top speed limit for this vehicle has been removed.
...

RPM Limit Increased

The RPM limit has been raised to 7000 RPM
...

Temperature Protection

Engine power is lowered under extreme temperatures.



Performance Data


Revo Ford Mustang Stage 1
Mustang 2.3 EcoBoost - Dyno Graph (WHP/NM)

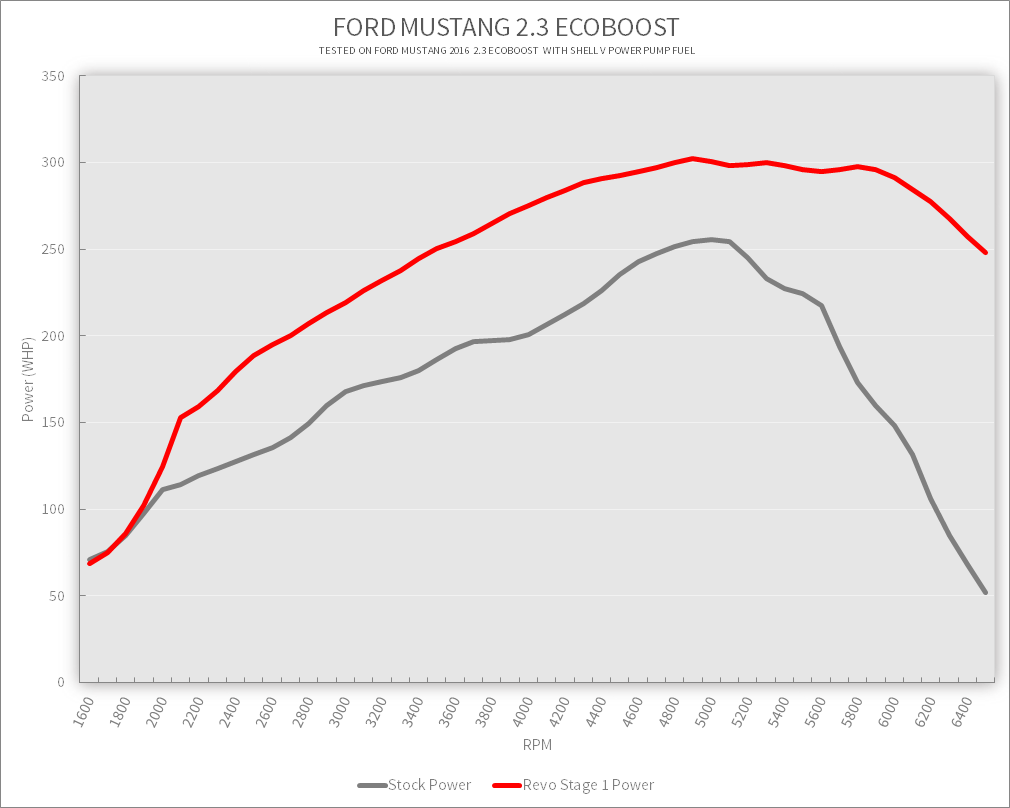

Revo Ford Mustang Stage 1
Mustang 2.3 EcoBoost - Power Dyno Graph (WHP)

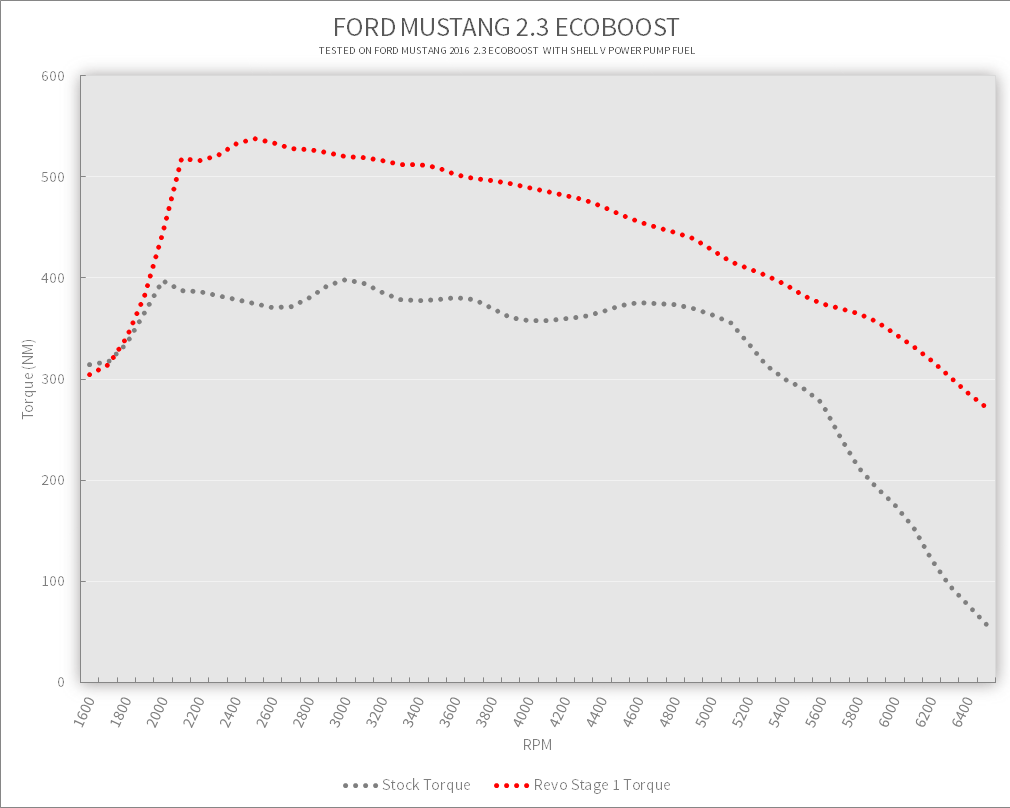

Revo Ford Mustang Stage 1
Mustang 2.3 EcoBoost- Torque Dyno Graph (NM)
*All graph data produced using a 2016 Ford Mustang 2.3 EcoBoost with Standard Shell vpower Pump Fuel




Performance Times


Performance testing was carried out on a private track in the UK with an ambient temperature of 19ºC. US Imported 2015 Performance Pack Ford Mustang 2.3 EcoBoost with a manual transmission. Factory wheels with road tyres, traction control off and 98RON Shell® vPower®.

  0-60 mph 0-100 mph 30-70 mph 30-130 mph
Stock 6.48 s 16.17 s 5.93 s -
Stage 1 5.24 s 12.65 s 5.08 s 20.57 s

Technical Data


  • Speed Limit Raised to 186mph
  • RPM Limit raised to 7000 RPM
  • Shift indicator light at 6200 RPM
  • Smoothed pedal response
  • Temperature related protection
  • Various fuel quality options



Temperature Protection


During testing it quickly came to light that the 2.3 EcoBoost engine suffers considerably with high temperatures. This not only affects the top-end power output of the engine but can also cause considerable damage. To prevent this from happening, our calibration team have incorporated Temperature Protection, an additional safety feature that limits engine power under extreme temperatures before damage to engine.


How it Works



Revo Ford Mustang Stage 1
Temperature Protection Feature

Revo Stage 1 tuning is developed to work within the constraints of the standard engine; we could run more boost and power, but not reliably or consistently on an otherwise standard vehicle. Our testing indicated that this engine struggles with heat management; in high temperature conditions (Rolling Road, High ambient temps, and prolonged vmax/track use) intake air temperatures (IAT) climb very quickly without additional cooling modifications.

We have implemented additional safety features by reducing overall power as IAT's climb to undesirable levels.

  •
  • IAT over 45ºC; power is reduced by 5%
  • IAT over 50ºC; power is reduced by 10%
  • IAT over 60ºC, power is reduced by 15%
  • IAT over 70ºC, power is reduced to around stock levels

Please note: IAT displayed on the dash clocks is not the true IAT being monitored by the ECU or the Temperature Protection feature.

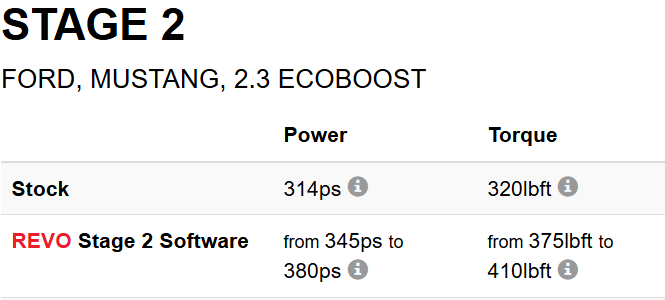

The Ford Mustang is synonymous with a big V8 engine, so Ford’s decision to offer a 4 cylinder 2.3 option might have come as a shock. With a turbocharged 2.3 EcoBoost engine, this is not just a practical alternative to the V8, but now a contender thanks to Revo Software. Revo Stage 1 gave the 2.3 a new lease of life but Stage 2 is something else; it has serious grunt and a new sense of urgency. It doesn’t feel flat or underpowered anymore and really wants to pick up and go.

The increased midrange and top end is phenomenal, and makes it a much more rewarding car to drive; and It’s quick too, more responsive and has a much broader power band. With the additional power and torque, you can actually drive the car rather than just planting your foot and wishing there was more there. With the Stage 2 Pack, it’s now a fun, quick and very capable car, with more torque than the stock 5.0 V8.


An Enhanced Driving Experience


Revo offers some of the most substantial performance increases on the market, however, peak figures form part of a much bigger picture and are never the sole focus during development. Only Revo offers a perfect balance of performance, economy, longevity and safety. Development and testing of Revo performance software is done in a number of territories around the world, considering variations in atmospheric conditions such as altitude and temperature.



Software Features


Revo Speed Limit Unlock

Speed Limit Unlock

The top speed limit for this vehicle has been removed.
...

RPM Limit Increased

The RPM limit has been raised to 7000 RPM
...

Temperature Protection

Engine power is lowered under extreme temperatures.



Performance Data



All Data produced and taken from the same 2016 Ford Mustang 2.3 Ecoboost on our own in-house Dynapack hub dyno. The graphs show the stock vehicle with no software or hardware upgrades against the same vehicle with the full Revo Stage 2 Performance Pack upgrade, which includes software and hardware.

The graphs below show increase increases in both power and torque throughout the entire rev range, especially after 5200RPM, from a stock Mustang to the Revo Stage 2 Performance Pack

  • Peak 104WHP Gain
  • Peak 185NM Gain
  • Max 270WHP Gain @ 6400RPM
  • Max 300NM Gain @ 6400RPM
Revo Ford Mustang Stage 1
Mustang 2.3 EcoBoost - Power Dyno Graph (WHP)
Revo Ford Mustang Stage 1
Mustang 2.3 EcoBoost- Torque Dyno Graph (NM)
*All graph data produced using a 2016 Ford Mustang 2.3 EcoBoost with Standard Shell vpower Pump Fuel




Performance Times


Performance testing was carried out on a private track in the UK with an ambient temperature of 20ºC. The US Imported 2016 Performance Pack Ford Mustang 2.3 EcoBoost with a manual transmission. 20" wheels with road tyres, traction control off and 98RON Shell® vPower®.

  0-60 mph 0-100 mph 30-70 mph 30-130 mph 100-200 kph
Stock 6.70 s 17.04 s 6.29 s - -
Stage 1 5.32 s 12.90 s 5.13 s 20.57 s 14.68 s
Stage 2 Package 5.10 s 11.74 s 4.67 s 18.08 s 12.73 s

Technical Data


  • Speed Limit Raised to 186mph
  • RPM Limit raised to 7000 RPM
  • Shift indicator light at 6200 RPM
  • Smoothed pedal response
  • Temperature related protection
  • Various fuel quality options



Temperature Protection


During testing it quickly came to light that the 2.3 EcoBoost engine suffers considerably with high temperatures. This not only affects the top-end power output of the engine but can also cause considerable damage. To prevent this from happening, our calibration team have incorporated Temperature Protection, an additional safety feature that limits engine power under extreme temperatures before damage to the engine.


How it Works



Revo Stage 2 tuning is developed to work with our stage 2 package hardware; even with the improved cooler temperatures from the Revo intercooler, we decided to leave the temperature protection in place. The additional Revo hardware manages to keep temperatures much lower than the stock parts, however, temperatures can still rise in high-temperature conditions (Rolling Road, High ambient temps, and prolonged vmax/track use) so for your piece of mind you know power will to reduced to protect your engine.

We have implemented additional safety features by reducing overall power as IAT's climb to undesirable levels.

  •
  • IAT over 45ºC; power is reduced by 5%
  • IAT over 50ºC; power is reduced by 10%
  • IAT over 60ºC, power is reduced by 15%
  • IAT over 70ºC, power is reduced to around stage 1 level

Please note: IAT displayed on the dash clocks is not the true IAT being monitored by the ECU or the Temperature Protection feature.



The Revo Difference


...

OBD Port Install

Revo Software can be installed quickly and safely via the OBD Port without the need to open the ECU.
...

30 Day Guarantee

We know you'll love how Revo Software transforms your car. If you don't, we'll give you your money back.
...

Fuel Economy

Dependent on your driving style, this software will deliver like for like fuel economy in 'normal' driving conditions.
