MQB 2.0TSI EA888 Evo High Output Airbox Lid Kit
Beautifully crafted from the highest quality 3K carbon, the Revo Carbon Series is much more than a visual enhancement. Designed to directly replace the restrictive OEM components, the Carbon Series has performance woven into every core of every product.

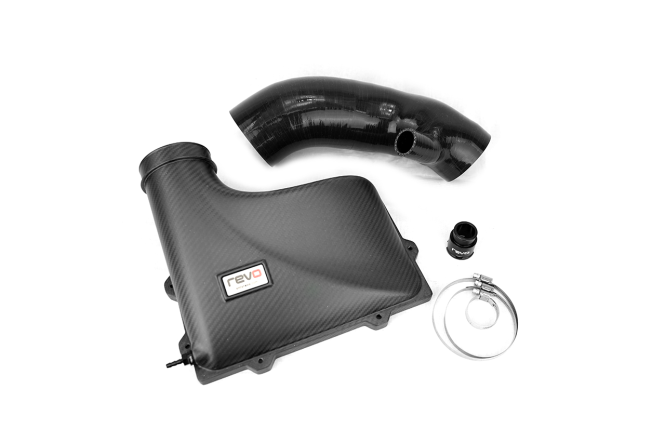

The Revo Carbon Airbox Lid Kit has been designed and engineered to directly replace the OE airbox lid, filter, and intake pipe found on vehicles equipped with the EA888 EVO High Output engine and Continental® turbocharger.
When enhancing the performance of the 2.0T EA888 EVO High Output engine with performance software, the restrictive OEM intake limits the potential power gains from the software. The Revo Carbon Airbox Lid Kit the most restrictive elements of the OEM system for the ultimate in performance and visual upgrades, flowing more air volume and promoting smoother airflow. The OE turbocharger inlet is utilized in the Revo kit, as initial evaluation found that the OE inlet’s size and design (markedly similar to the Revo EVO Low Output inlet) does not provide any significant airflow restriction. All components of the Revo system have been meticulously designed to work in harmony with each other and the OE turbocharger inlet – each Revo part’s air volume and flow stability features compliment the next to provide substantial performance gains at any level of EA888 EVO High Output engine tuning.
The Revo carbon lid directly replaces the OEM airbox lid, increasing airflow via the 16% larger outlet and functional curvature of the main body while adding a beautiful form-follows-function look to the EVO High Output engine bay. The closed air system and 3K carbon construction helps reduce intake air temperatures while the machined filtered-air vacuum connection ensures all necessary engine connections are maintained for a flawless, drop-in performance and visual upgrade.
The Revo silicone hose perfectly supplements the increased size of both the Revo Carbon Airbox Lid and the Continental® OE turbocharger inlet, replacing the OE corrugated plastic hose with a larger, internally smooth part that reduces internal air turbulence and dramatically increases the volume and speed of filtered air delivered to the turbocharger. The Revo hose’s four-ply construction, coupled with an internal wire helix, increases strength to prevent collapsing under high vacuum and engine bay temperatures. Revo Flush Fit internal steps create a smooth transition between the Revo Lid and OE turbocharger inlet, ensuring the smoothest airflow possible within the system. The quality-controlled gloss black exterior finish naturally blends into the engine bay, taking nothing away from the elegant aesthetic of the Revo Carbon Lid.
The Revo machined DV connector allows for OE fitment to the factory DV hose. The precision machined connector replicates the OE part found on the intake hose, designed to seamlessly fit into the Revo hose at the factory location of the DV takeoff. Strict machining tolerances and quality control ensure that the fitment of the Revo connector mirrors the factory connection exactly, ensuring no boost pressure is lost during recirculation and thus allowing for maximum intake performance.
All Revo products are designed in-house utilising an in-house 3D printer, 3D scanner and the latest CAD and CFD programs. Bench airflow testing was carried out on both the full OE EVO High Output intake system and the Revo Carbon Series Airbox Lid Kit at a third party, independent facility within a controlled environment to ensure fair test data was captured and to accurately quantify the intake restriction benefits of the Revo kit.

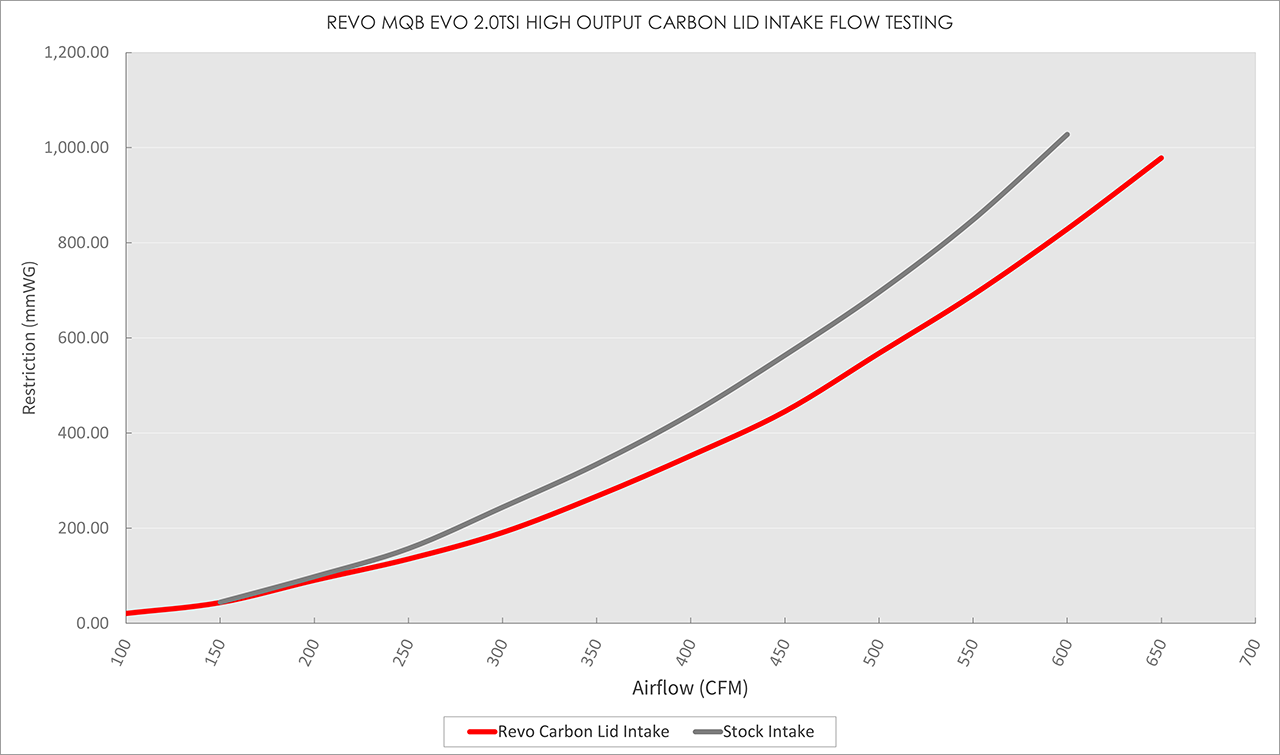

The bench airflow testing results show the Revo kit’s average 18.86% reduction in restriction throughout the entire airflow range. Notably, the top end of the airflow testing range is where the OE system is most restrictive, the Revo kit offers the most improvements and where performance software typically unlocks additional power (through higher boost pressure/airflow turbocharger demands). The Revo kit was able to flow over 650CFM at 978.07 mmWG restriction, over 50CFM more than the OE system at 600CFM and a significantly higher 1027.73 mmWG restriction. At the OE maximum flow volume of 600CFM, the Revo kit reduced restriction by 19.37% (828.7 mmWG vs. 1027.73 mmWG). At a 300CFM flow testing volume, the Revo kit yields the maximum restriction reduction of the entire test (21.65% reduction – 191.2 mmWG vs. 244.03 mmWG), clearly demonstrating how the Revo kit out-performs the OE system, improves the intake airflow of the EVO High Output engine and increases vehicle performance.
