REVO AUDI TT MK3 8S ECU | 2.0TSI

$1,350.00 NZD
OR 6 WEEKLY PAYMENTS FROM $225.00 WITH Whats this?
ECU TUNE:
Quantity:

ONLY THE DRIVEN


Revo offers some of the most substantial performance increases on the market, however, only the driven know that peak figures form part of a much bigger picture and are never the sole focus during Revo’s development process; it’s all about the drive. Only Revo offers a perfect balance of performance, economy and engine longevity.

The Revo tuning philosophy ensures that impressive performance benefits are balanced with useable, reliable power delivery that enhances the way your vehicle drives. Development on the road and racetrack as well as testing in controlled dyno conditions gives you a clearer picture of the performance you can expect from Revo ECU Software. Testing in this way plays an important role in ensuring the highest quality products and delivering the driving experience expected.



2.0TSI IS20 GEN3 GPF


The latest generation 2.0TSI engine has seen some substantial changes in factory form to keep in line with the latest emissions laws. Most notable is the introduction of the GPF (Gasoline Particulate Filter) and the change to the direct injection system. Close monitoring of the GPF system has been an essential step in finding the limitations and tuning potential of the newer DKTB engines. The general consensus is that the GPF not only mutes but limits the engine power, Revo ECU calibration might be a reason to dispute that.

Enhancing the vehicle with Revo ECU Software gives you much more than just an increase in power and torque. A large part of development is based on drive cycle and driver feedback, our calibration doesn’t just give a great dyno curve and peak power/torque figures but also delivers in feel; giving a smoother yet more responsive feel at low RPM/ partial throttle with huge gains at wide-open throttle throughout the whole rev range.

Only Revo performance ECU Software maintains factory safety levels and additional driving features. You can switch between three pre-set fuel quality modes depending on the fuel you use; these modes are set through testing our development vehicles in varying climatic conditions with a range of fuel quality throughout the world. The Revo SPS Software Switch is also available separately, can be used to quickly switch between performance modes and access the additional Anti-Theft mode.



Software Features


...

SERIAL PORT SWITCH (SPS)

Switchable software for 3 performance modes and Antitheft.1
...

COLD START PROTECTION

Boost is limited until safe oil temperature is reached.
...

TEMPERATURE PROTECTION

Enhanced engine cooling and oil temperature management.
...

SPEED LIMIT UNLOCK

The top speed limit for this vehicle has been removed.



GLOBAL DEVELOPMENT PROGRAMME


Only Revo operates a Global Development Programme through its network of over 400 Revo Authorised Dealers worldwide. Access to vehicles on this scale enables the calibration team to fine-tune products before release, testing products in a wide range of climates and conditions including altitude, fuel quality, humidity. This also allows Revo to test how Revo products perform in different driving scenarios and formed a vital part in the development of Performance ECU Software.

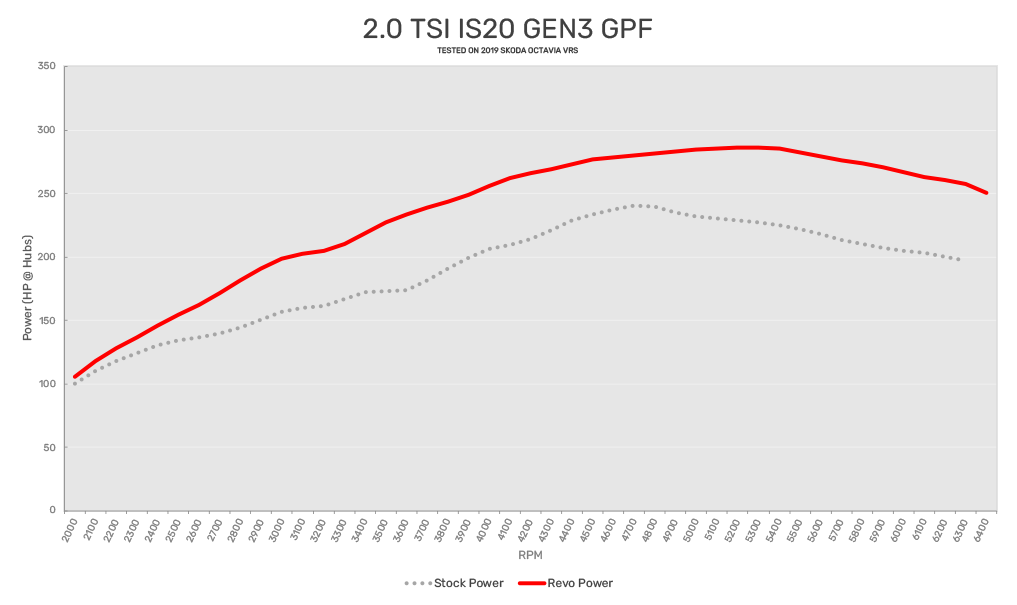

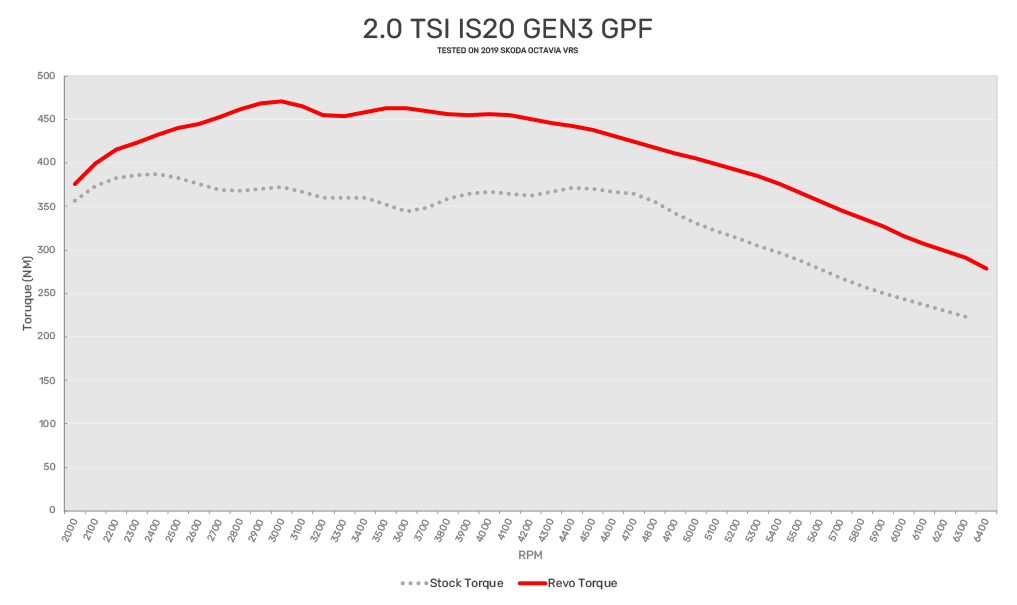

Power Graphs


2.0T EA888 GEN3 GPF Revo Stage 1 Software
2.0T EA888 GEN3 GPF Revo Stage 1 Software



ADDITIONAL FEATURES



COLD START PROTECTION


For engine oil to work effectively and lubricate your engine it needs time to warm up. When you first start your car, the cold oil is at its thickest, producing higher oil pressure when pumped around the engine putting extra pressure on oil seals. As the engine temperature increases, so does oil temperature. This thins the oil, enabling it to run more freely and better lubricate the moving parts of your engine. Cold Start Protection helps protect engine components by limiting turbo boost based on RPM and oil temperature until it reaches the 80ºC optimum operating level.



TEMPERATURE PROTECTION


Revo Temperature Protection is an additional safety feature that reduces overall load as the oil temperature passes a set limit. Exhaust gas temperatures (EGT) are also monitored, adapting the operating conditions (Air Fuel Ratio) to ensure they stay within safe parameters. If EGT's reach a set upper limit, then power is automatically reduced until the engine returns to a safe operating temperature.

If oil temps are 120° or above with coolant temps of 100° or more when the engine is shut off the fans will continue to run.



ENHANCED TURBO CONTROL


Revo Enhanced Turbine Control offers factory-like protection parameters to avoid over-boost and ensure turbine speeds do not exceed a safe level.




Revo offer some of the most substantial performance increases on the market. How this power is delivered however is far more important to us, which is why peak figures form part of a much bigger picture and are never the sole focus during the development process. It’s all about the drive, and only Revo offers a perfected balance of power, economy and an exciting drive.

The Revo tuning philosophy ensures that impressive performance benefits are balanced with useable, reliable power delivery that enhances the way your vehicle drives. Development on the road and race track, as well as testing in controlled dyno conditions, gives you a clearer picture of the performance you can expect from Revo ECU software. Testing in this way plays an important role in ensuring the highest quality products and delivering the driving experience you demand.

Only Revo performance ECU software maintains factory safety levels and additional driving features, so you can enjoy each mode’s unique characteristics as usual. You can also choose between three pre-set fuel quality modes depending on which fuel you use. If you would like the ability to do this yourself then the Revo SPS (Serial Port Switch) is also available separately, which can be used to quickly switch fuel modes and access an additional Anti-Theft mode without the need to visit a Revo Authorised Dealer.



2.0TSI IS20 GEN3 GPF


The latest generation 2.0TSI engine has seen some substantial changes in factory form to keep in line with the latest emissions laws. Most notable is the introduction of the GPF (Gasoline Particulate Filter) and the change to the direct injection system. Close monitoring of the GPF system has been an essential step in finding the limitations and tuning potential of the newer DKTB engines. The general consensus is that the GPF not only mutes but limits the engine power, Revo ECU calibration might be a reason to dispute that.

Enhancing the vehicle with Revo ECU software gives you much more than just an increase in power and torque. A large part of development is based on drive cycle and driver feedback, our calibration doesn’t just give a great dyno curve and peak power/torque figures but also delivers in feel; giving a smoother yet more responsive feel at low RPM/ partial throttle with huge gains at wide-open throttle throughout the whole rev range.



AVAILABLE AS PART OF A PERFORMANCE PACK




To access the maximum potential of our software, choosing the correct hardware is extremely important. We offer an extensive range of products designed to work in harmony with our software to give you an experience you won't forget. With the Revo Performance Pack, we’ve created a tuning solution unlike any other. With everything you’ll need installed and set up by one of our Authorised Dealers, we’ve taken the guess-work out of tuning.


You can find out more about the Revo Performance Pack for this vehicle, Click here.


Software Features


...

SERIAL PORT SWITCH (SPS)

Using an SPS switch you can take advantage of the switch-ability of Revo software. The Patented OBD2 interface is the ultimate compliment to Revo performance software, giving you the ability to switch between antitheft and 3 fuel quality modes via the vehicle OBD port.

  • SPS Position 1 - Antitheft mode
  • SPS Position 2 - 95ron fuel mode
  • SPS Position 3 - 97ron fuel mode
  • SPS Position 4 - 98/99ron fuel mode

Simply select a program, plug it in, wait a few seconds, remove the SPS device and start the car. It's simple and there's no fixed switch to install in the vehicle.

...

TEMPERATURE PROTECTION

Revo Temperature Protection is an additional safety feature that reduces overall load and RPM as the oil temperature passes a set limit. Exhaust gas temperatures (EGT) are also monitored, adapting the operating conditions (Air Fuel Ratio) to ensure they stay within safe parameters. If EGTs reach a set upper limit, then the AFR will automatically change until the engine returns to a safe operating temperature. Additional changes to the calibration, including oil protection and pressure, are made to greater help control temperatures. Air intake and coolant temperatures are also closely monitored and boost will be reduced if they exceed the set limit to help maintain constant performance and aim in helping lower temperatures quicker.

...

LEFT FOOT BRAKING

Left foot braking has been enabled on this vehicle.

...

SPEED LIMIT

  • The top speed limit for this vehicle has been removed.
  • The engine rev limit has been increased to 7000rpm
  •
...

ADDITIONAL FEATURES

Along with all the features above the software includes the following:

  • Stop/start default mode changed to "off".
  • Dash Boost pressure display recalculated.
  • Dash Power gauge rescaled.

GLOBAL DEVELOPMENT PROGRAMME


Only Revo operates a Global Development Programme through its network of over 400 Revo Authorised Dealers worldwide. Access to vehicles on this scale enables the calibration team to fine-tune products before release, testing products in a wide range of climates and conditions including altitude, fuel quality, humidity. This also allows Revo to test how Revo products perform in different driving scenarios and formed a vital part in the development of Performance ECU software.


Power Graphs


MQB 2.0 TSI Revo Stage 2 Software
MQB 2.0 TSI Revo Stage 2 Software

ADDITIONAL DATA


Performance Data

Performance data are taken from DynaPack hub dyno, and all figures are quoted at the hub.

  • Peak Performance: 318HP / 500NM
  • Peak Gains over stock (Tested): +90HP/ +106NM
  • Max Gains over stock (Tested): +103HP @ 5700RPM / +143NM @ 3500RPM

Required Hardware

Recommended Hardware

The Revo Difference


...

OBD Port Install

Revo software can be installed quickly and safely via the OBD Port without the need to open the ECU.
...

Money Back Guarantee

We know you'll love how Revo software transforms your car. If you don't, we'll give you your money back.
...

Fuel Economy

Dependant on your driving style, this software will deliver like for like fuel economy in 'normal' driving conditions.
