REVO AUDI S3 8V.1/8V.2 ECU | 2.0TSI

$1,250.00 NZD
OR 6 WEEKLY PAYMENTS FROM $208.33 WITH Whats this?
ECU TUNE:
Quantity:

ONLY THE DRIVEN


Revo offer some of the most substantial performance increases on the market. How this power is delivered however is far more important to us, which is why peak figures form part of a much bigger picture and are never the sole focus during the development process. it’s all about the drive, and only Revo offers a perfected balance of power, economy and an exciting drive.

The Revo tuning philosophy ensures that impressive performance benefits are balanced with useable, reliable power delivery that enhances the way your vehicle drives. Development on the road and race track, as well as testing in controlled dyno conditions, gives you a clearer picture of the performance you can expect from Revo ECU Software. Testing in this way plays an important role in ensuring the highest quality products and delivering the driving experience you demand.

Only Revo performance ECU Software maintains factory safety levels and additional driving features, so you can enjoy each mode’s unique characteristics as usual. You can also choose between two pre-set fuel quality modes depending on which fuel you use.



AVAILABLE AS PART OF A PERFORMANCE PACK




To access the maximum potential of our software, choosing the correct hardware is extremely important. We offer an extensive range of products designed to work in harmony with our software to give you an experience you won't forget. With the Revo Performance Pack, we’ve created a tuning solution unlike any other. With everything you’ll need installed and set up by one of our Authorised Dealers, we’ve taken the guess-work out of tuning.


You can find out more about the Revo Performance Pack for this vehicle, Click here.



Software Features


...

SPEED LIMIT UNLOCK

The top speed limit for this vehicle has been removed.
...

LEFT FOOT BRAKING

Left foot braking has been enabled on this vehicle.
...

TEMPERATURE PROTECTION

Enhanced engine cooling and oil temperature management.
...

COLD START PROTECTION

Boost is limited until safe oil temperature is reached.
...

SERIAL PORT SWITCH (SPS)

Switchable software for 3 performance modes and Antitheft.
...

EXHAUST OVERRUN 1

Enhanced exhaust note on overrun in Sports Mode.



GLOBAL DEVELOPMENT PROGRAMME


Only Revo operates a Global Development Programme through its network of over 400 Revo Authorised Dealers worldwide. Access to vehicles on this scale enables the calibration team to fine-tune products before release, testing products in a wide range of climates and conditions including altitude, fuel quality, humidity. This also allows Revo to test how Revo products perform in different driving scenarios and formed a vital part in the development of Performance ECU Software.

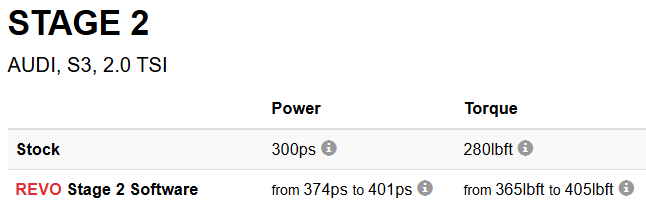

Power Graphs


MQB 2.0 TSI Revo Stage 2 Software
MQB 2.0 TSI Revo Stage 2 Software



PERFORMANCE TIMES


Performance testing was carried out on a private track in the UK with an ambient temperature of 17ºC. 2018 VW Golf R with DSG transmission. Revo Rv019 19" wheels with road tyres, traction control off and 99RON Shell vPower. The average performance times are taken from 5 consecutive runs.

  0-60 mph 100-200 kph
Stock (Claimed) 4.9 s 14.2 s
Revo Performance Pack 3.6 s 8.8 s

ADDITIONAL DATA


Performance Data

Performance data are taken from DynaPack hub dyno, and all figures are quoted at the hub. Revo software comparison is between the previous and new version.

  • Peak Performance: 360HP / 560NM
  • Peak Gains over stock: +75HP/ +189NM
  • Max Gains over stock: +109HP @ 4400RPM / +211NM @ 3900RPM
  • Peak Gains over previous Stage 2: +10HP/ +35NM
  • Max Gains over previous Stage 2: +37HP @ 2800RPM / +93NM @ 2800RPM

Required Hardware

Recommended Hardware

Revo offers a limited lifetime update for main dealer/factory updates and includes free of charge software updates as they become available. Revo Authorised Dealer labour charges are not included and are at the discretion of the dealer. Read more.



ADDITIONAL FEATURES



COLD START PROTECTION FEATURE


For engine oil to work effectively and lubricate your engine it needs time to warm up. When you first start your car, the cold oil is at its thickest, producing higher oil pressure when pumped around the engine putting extra pressure on oil seals. As the engine temperature increases, so do the oil temperature. This thins the oil, enabling it to run more freely and better lubricate the moving parts of your engine. Cold Start Protection helps protect engine components by limiting turbo boost until the oil temperature increases and reaches optimum operating levels.

  • Oil below 70ºC: Boost limited
  • Oil above 70ºC: Full boost available

TEMPERATURE PROTECTION


Testing indicated that in high-temperature conditions (rolling road, high ambient temps, and prolonged Vmax use) oil temperatures can climb to an undesirable level. Revo Temperature Protection is an additional safety feature that reduces overall load as the oil temperature hits a set limit. The oil cooler valve opens sooner with Revo Software to ensure earlier cooling of oil. This feature actively monitors exhaust gas temperatures, adapting the requested load (power) to ensure they stay within safe parameters. If EGT's reach an upper-temperature limit, then power is automatically reduced until the engine returns to a safe operating temperature.



EXHAUST OVERRUN 1


The Revo Exhaust Overrun feature offers an audible crackle that's more OEM+ than 'pops and bangs'. The track influenced acoustics are exclusive to Sports Mode and only activated when within safe tolerances. Active during manual gear shifts, throttle lift off during deceleration, whilst extensive development ensures engine safety. Currently only available for vehicles running Performance Pack or Stage 2 software and limited by ECU Identification number. Read more.



SWITCHABLE SOFTWARE


Using the Revo SPS Software Switch you can take advantage of the multiple options in your ECU Software. The patented OBD2 interface is the ultimate compliment to Revo performance software, giving you the ability to switch between 3 fuel performance modes and an Anti-Theft mode.

  • SPS Position 1 – Stock Mode
  • SPS Position 2 – 97ron fuel / Regular torque for manual vehicles with stock clutches
  • SPS Position 3 – 98ron+ fuel / Higher torque for DSG or manual vehicles with an uprated clutch.
  • SPS Position 4 – Anti Theft

Simply select a program, plug in, wait a few seconds, remove the SPS device and start the car. It's simple and there's no fixed switch to install in the vehicle.

TCU Software required for vehicles with the DQ250 DSG6 gearbox. Revo Transmission Control Unit (TCU) Software ensures your gearbox works in harmony with Revo ECU Software to give you access to even more power. Please select the DSG Software | Stage 2 tab at the top of this page for more information.


ANTITHEFT MODE


Revo Software is installed with a built-in Antitheft Mode, which is accessible with the Revo SPS Software Switch. This mode disables throttle response and limits RPM, adding an extra level of security to your pride and joy.



ONLY THE DRIVEN


Revo offers some of the most substantial performance increases on the market, however, only the driven know that peak figures form part of a much bigger picture and are never the sole focus during Revo’s development process; it’s all about the drive. Only Revo offers a perfect balance of performance, economy and engine longevity.

The Revo tuning philosophy ensures that impressive performance benefits are balanced with useable, reliable power delivery that enhances the way your vehicle drives. Development on the road and racetrack as well as testing in controlled dyno conditions gives you a clearer picture of the performance you can expect from Revo ECU Software. Testing in this way plays an important role in ensuring the highest quality products and delivering the driving experience expected.



2.0TSI GEN3 IS38ETR


Combining Revo's expertise in hardware design, development, testing and manufacture with Revo Performance Software the outcome is a complete package to rival anything from an OEM Manufacturer. The IS38 ETR Turbo upgrade is designed to provide a completely reliable solution giving up to 520BHP/580NM on EA888 Gen3 vehicles running on stock engine internals.

Enhancing the vehicle with Revo ECU Software gives you much more than just an increase in power and torque. It feels more responsive and offers a huge improvement throughout the whole rev range, something that only the driven will understand and demand.

Only Revo performance ECU Software maintains factory safety levels and additional driving features. You can also choose between four pre-set fuel quality modes depending on which fuel you use. The Revo SPS Software Switch is also available separately, which can be used to quickly switch between a low boost mode and 3 other performance modes for 97, 98 and 100ron fuel quality.



Big power, made simple


Performance and Power packages from Revo are designed for those who want the ultimate experience; refined drivability, exhilarating power delivery and crisp response low down and at the red-line. With a full suite of hardware and performance software available, we’ve created a tuning solution unlike any other. With everything you’ll need installed and set up by one of our Authorised Dealers, we’ve taken the guesswork out of tuning.

Designed for the most driven among us, we’ve designed and extensively tested a full package of supporting products required to run the Revo IS38ETR Turbo and performance ECU Software. Utilising the enhancements made by the Performance Pack, the only limitation is your right foot and how hard you’re willing to push it. Perfected for track and refined for the road, only Revo offers big power without a compromise on day-to-day driveability. Our strict tuning ethos offers the perfect balance of performance, driveability and economy, without sacrificing engine longevity.

Revo Performance Pack



This package, which is also available individually includes the Revo Carbon Series Air Intake System, Intercooler and Intercooler Pipe Upgrade Kit.

Add to this the Revo IS38ETR Turbo and performance ECU Software and you’ll be enjoying over 500HP and 580NM.
