REVO AUDI RS6/RS7 4.0 TFSI AIR INTAKE SYSTEM

Name: REVO AUDI RS6/RS7 4.0 TFSI AIR INTAKE SYSTEM
Brand: REVO
Price: 515.0 NZD
Availability: InStock

$515.00 NZD

OR 6 WEEKLY PAYMENTS FROM $85.83 WITH

Whats this?

AIR INTAKE SYSTEM:

Quantity:

The Audi RS6 and RS7 are without a doubt quick in their purest form, add Revo Stage 1 and 2 software however, they quickly become supercar killers. Giving the cars an even further boost in their already staggering power figures, we turned our attention to developing an upgrade for the air intake system. Testing found that the RS air-box had a tremendous amount of potential, with only a few key areas that caused restriction.

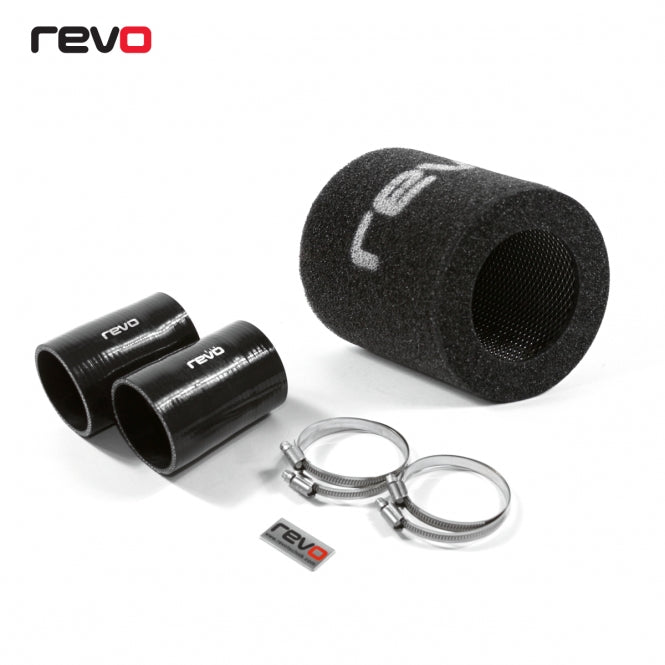

The new direct replacement kit includes a Revo foam filter, stepped silicone hoses and an aluminium tag. We installed the kit on an RS7 development vehicle, on our Dynopak hub dyno we saw improved power and torque throughout the rev-range, with consistent gains of +4WHP and +4NM over the stock filter and hoses when used with Revo Stage 1 ECU performance software.

Benefits

Increased airflow
+4 WHP and + 4 NM gain
Retains factory airbox
Custom designed Silicone Hoses
Revo ProPanel filter

Air filter

The standard paper filter found in most vehicles performs well under normal conditions, however, with increased power it becomes a major choking point in the system. Revo ProPanel filters work by trapping dirt particles within each of the oiled foam layers while allowing air to negotiate its way through, reducing restriction and offering much longer service intervals. We tested the filter at a leading motor testing centre ‘Mira’ on industry recognised dust load test. On a full dust load test, the foam filter was found to still be 99.3% efficient, filtering down to 5 microns while offering the least amount of restriction over similar products.

Silicone Hoses

The plastic hoses on the stock system design with a corrugated style to flex with the engine movement, while this has its place it also causes a large amount of turbulence as the airflow doesn’t have a smooth direct path to the turbos. We designed the silicone hoses with stepped internals to ensure a flush fit and to minimise turbulence while still allowing for engine movement.

Intake performance figures

Engine	Software	Power	Torque
4.0 TFSI	Stage 1	+ 4 BHP	+ 4 NM

*Maximum power and torque increases are shown in testing when using Revo 4.0 TFSI intake system compared to the stock intake on Audi RS7

Fitting

Manufacturer	Model	Engine	Year
Audi	RS6	4.0 TFSI	2012 >
Audi	RS7	4.0 TFSI	2012 >

Notes:

Simple replacement of the OEM part
Fitting Instructions
